Westbay Smart 7'' LCD 4G Wireless GPS Tracking Seat Occupancy Detection Passenger counting Seatbelt Warning Device Seat Occupancy Sensor For Bus Car Truck Chair Sofa Restaurant Cinema Meeting Room

Brand name: WESTBAY
Product name:Smart Seatbelt Reminder System
Model Number:  4G wireless+ GPS tracking +Remote Monitor
Language:  English, Spanish, Russian, Chinese, Any
Application:Vehicles, Bus, Van, Truck, Taxi, seat occupancy and seatbelt fasten remote monitor
Material:7'' Display, Single/Twin Seat Detection Terminal, Seat Sensor, Seat buckle
Force Range: 30kg-300kg
Life time: > 1million times
Working voltage: 12V-24V
Response time:<1 ms
Certificate:CE, ROHS, FCC, ISO 9001, ISO140001
INQUIRY NOW

Product Details





Product Description


WESTBAY SMART SEATBELT REMINDER SYSTEM

Intelligent Seat Occupancy/Seat Belt Reminder Remote Monitor System

Demand background:

The purpose of passenger car safety belt detection system is to realize scientific passenger safety management, remind passengers to wear safety belts and reduce secondary injuries caused by traffic accidents.

1. Statistics on passenger car occupancy rates, to help passenger transport companies realize real-time monitoring of the seat occupancy status of operating passenger vehicles, and to help managers use big data analysis to make scientific and effective decisions.

2. Statistics on the attendance rate of Car, Bus, Restaurant, Cinema, Hospital Seat, Bed, Office Chair, sitting room Sofa, intelligently identify and count the number of people seated in movie, theaters through the Internet of Things technology, and provide technical support for big data analysis.

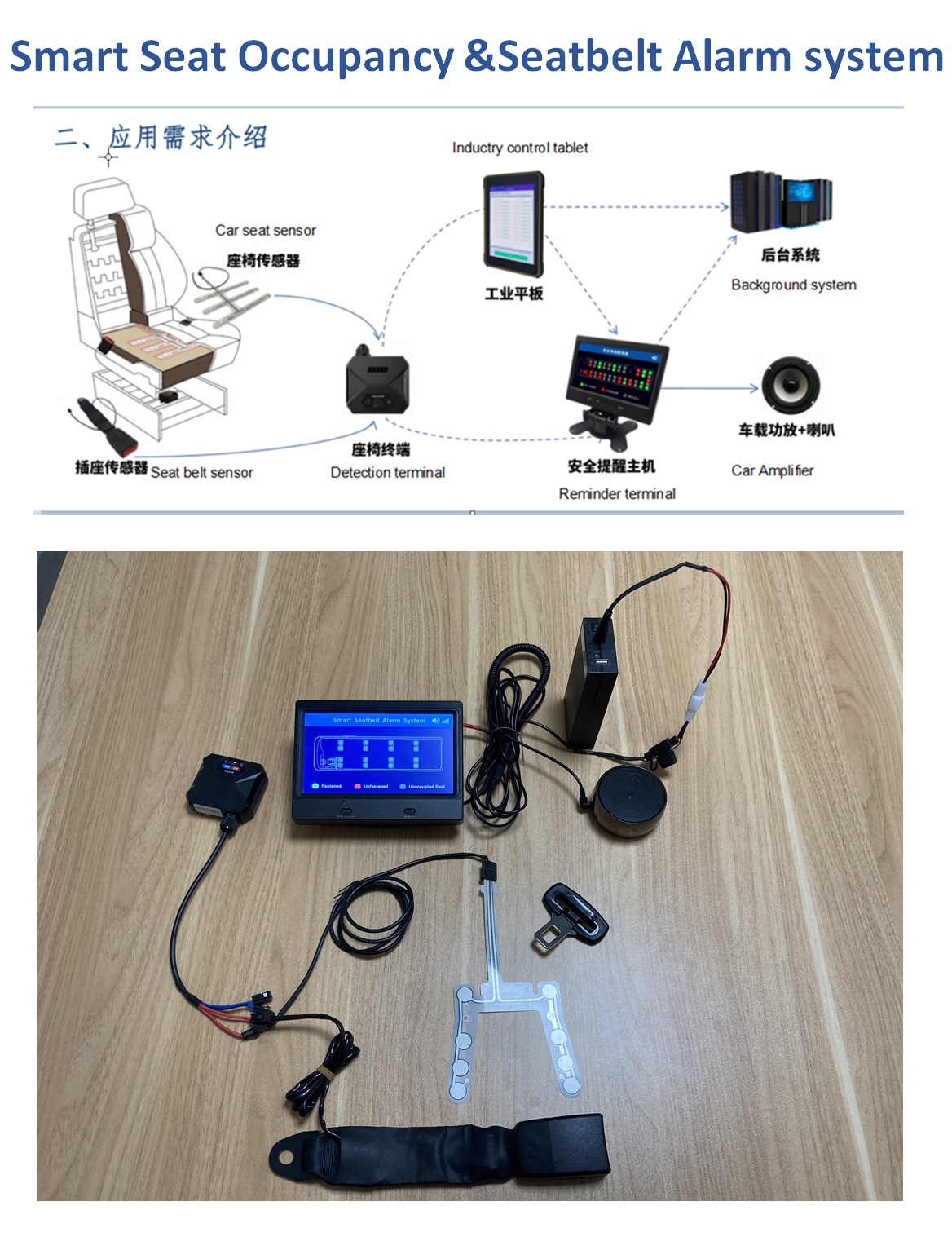

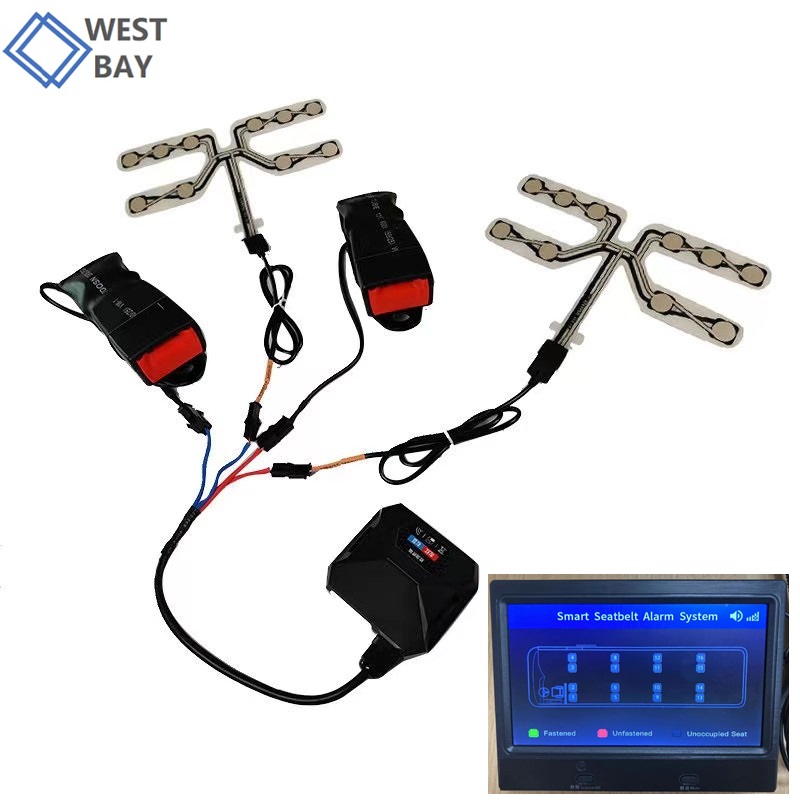

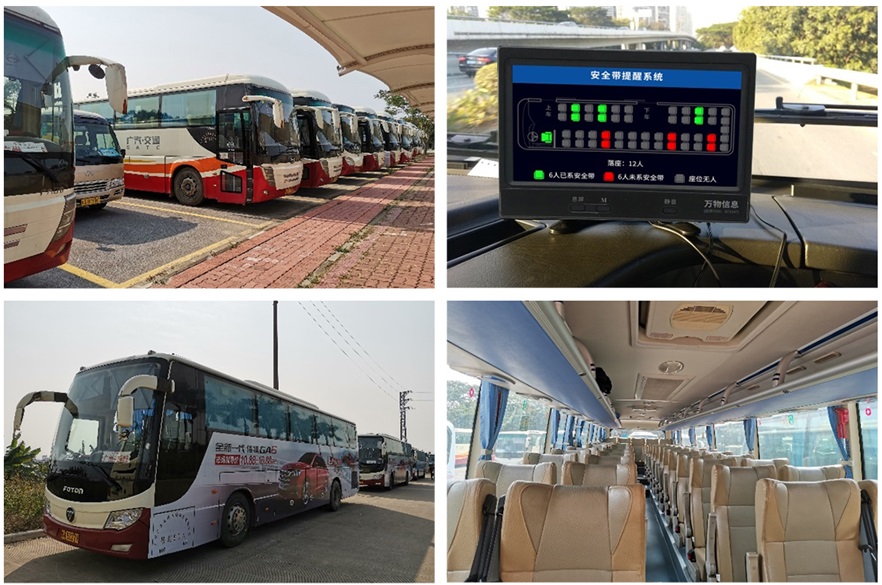

Westbay Intelligent Seat Occupancy/Seat Belt Reminder Remote Monitor System: this system is composed of safety reminder host, seat detection terminal, safety belt socket and seat sensor, handheld pad, background system and vehicle audio system.   When the pressure is detected on the seat, the sensor will send a signal to the seat detection terminal, which wirelessly transmits the signal to the reminder host, handheld pad and cloud terminal. At the same time, it will send an audible and visual reminder to inform passengers to fasten their seat belts.

By installing a wireless sensor transmitter on each seat, data is transmitted to the driver interactive device and goes to the cloud server. The vehicle position and passenger seat belt status can be monitored in real time, and real-time remote supervision can be achieved through the cloud server, which can effectively reduce safety risks.

 This smart seat occupancy system can be widely used in Car, Bus,Truck, Taxi, Airplane, Vehlicles, Restaurant, Cinema, Hospital Seat, Bed, Office Chair, Sofa, seat occupancy status,seatbelt fasten status remote monitor by sitting in office or at home.

Custom Language: English, Spanish, FrenchRussian, Turkish, Germany, Italian, Korea, Any other language













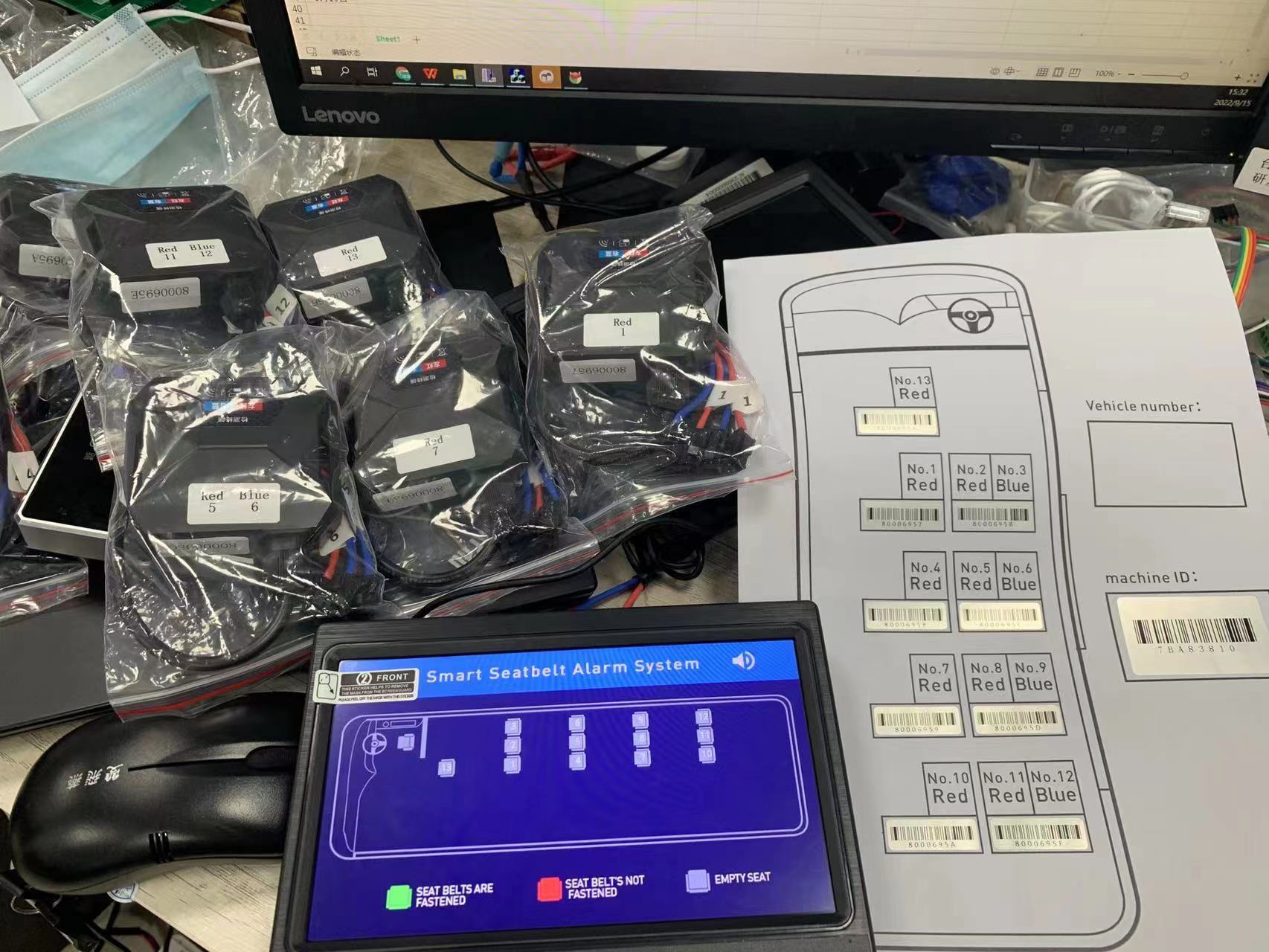

RD custom configure the seat layout program and language:




Westbay Intelligent safety belt reminder system: this system is composed of safety reminder host, seat detection terminal, safety belt socket and seat sensor, handheld pad, background system and vehicle audio system.

The detection terminal detects the state change of the seat sensor, detects whether someone is sitting down, packages the detection results, and sends them to the host for centralized processing through wireless signals at regular intervals. A seat detection terminal can detect the seating status of four seats.  It is widely used in statistics of passenger vehicle sitting rate.

When the pressure is detected on the seat, the sensor will send a signal to the seat detection terminal, which wirelessly transmits the signal to the reminder host, handheld pad and cloud terminal. At the same time, it will send an audible and visual reminder to inform passengers to fasten their seat belts.



4G Function:



Install the SIM card as picture, it will provide 4G signal to send the seat data to background system.





Basic parameters:
* Technology: RFID wireless IOT technology
* Power supply: disposable lithium subbattery (replaceable);
* Battery capacity: 3600mAh;
* Timed sending: 4 seconds to send once
* Battery life: more than 3 years;
* Communication frequency band: 2.4G;
* Communication distance: 40 meters (open);
* Shell material: ABS material;
* Wiring harness interface: 43020;
* Wire harness length: 200mm;
* Shell size: 84.7mm×73.3mm×24.4mm;
* Working temperature: -20℃~70℃;
* Installation method: fixed installation with cable ties.

Key Components:

1. Security reminder host

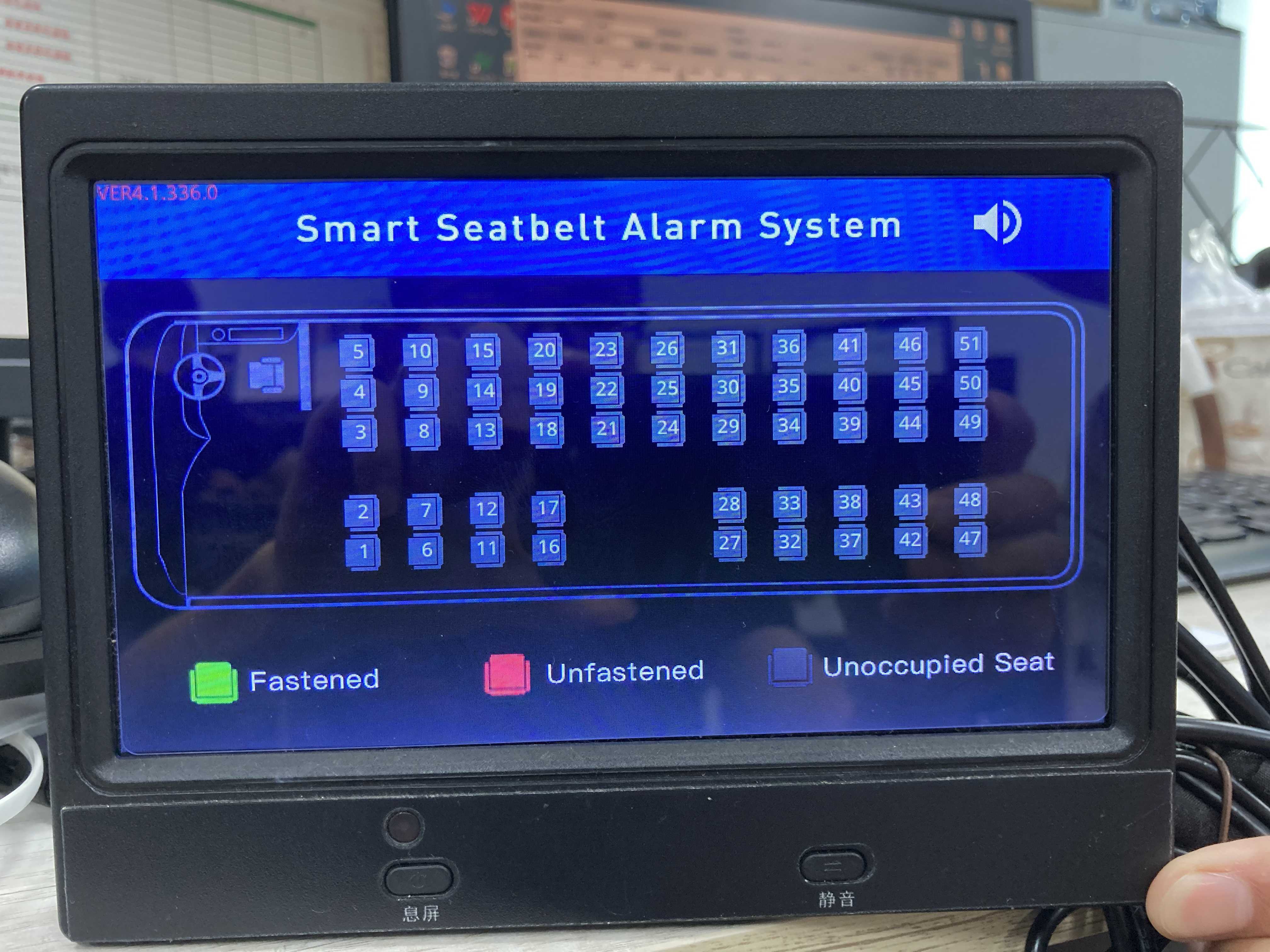

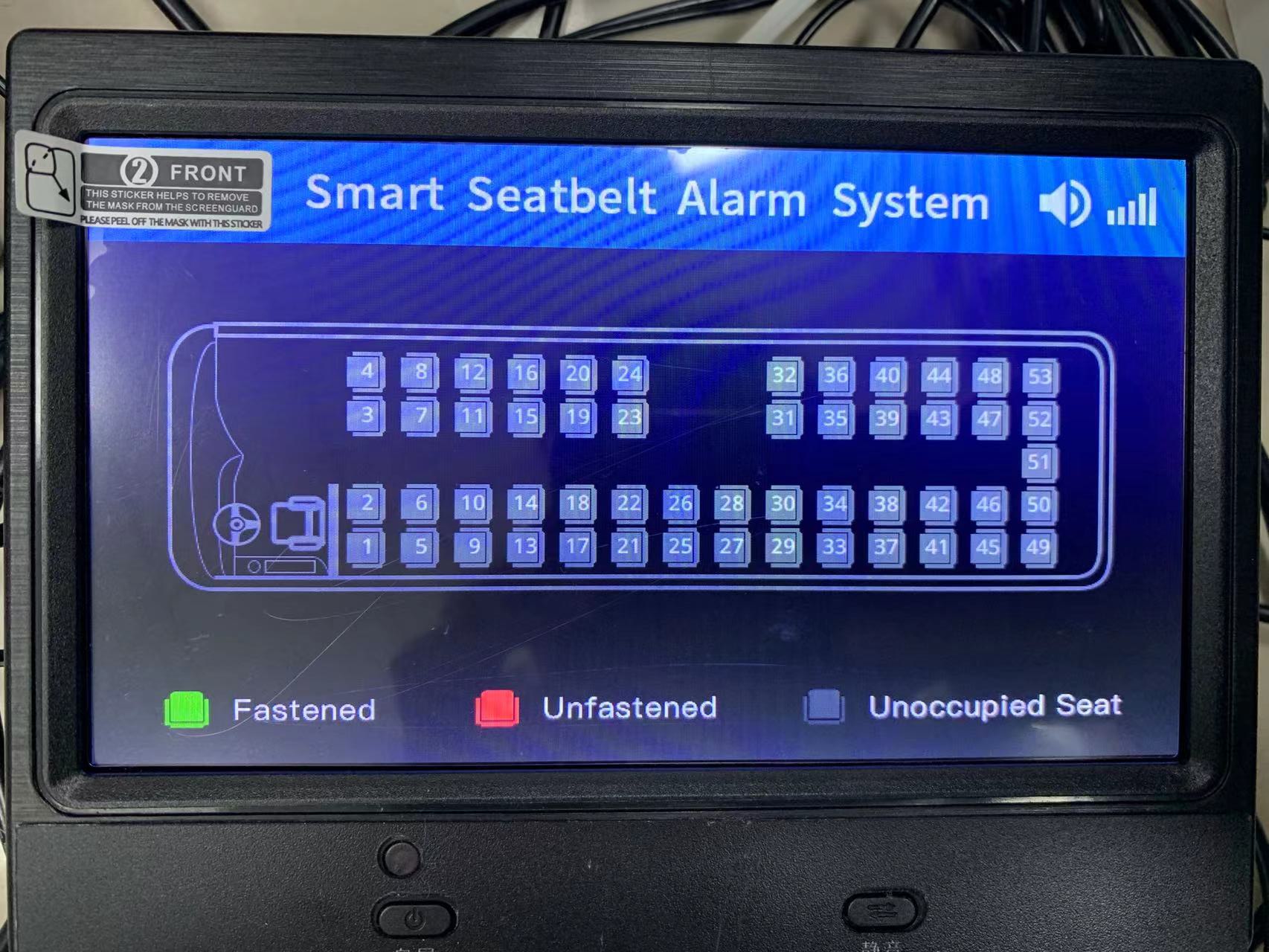

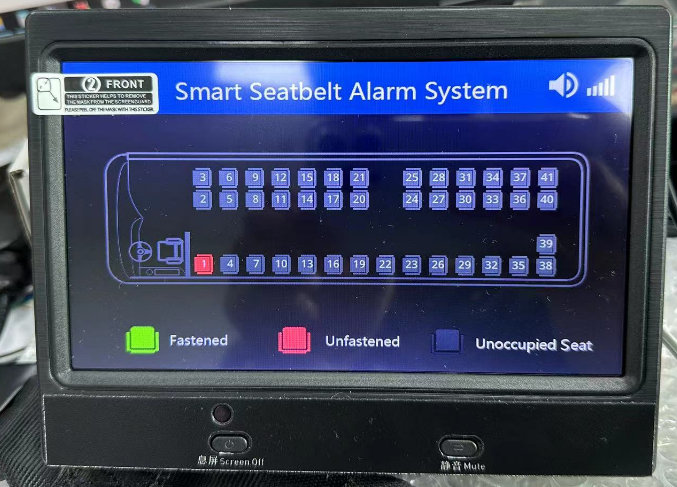

 The reminder host terminal receives the signal from the seat detection terminal, displays the result on the screen, outputs the audio signal to the on-board audio system, broadcasts to remind passengers who do not fasten their seat belts to fasten their seat belts, and uploads the data to the background system through 4G network.
(1) Communication frequency band: Sub-1G;
(2) Communication distance: 60 meters(spacious space);
(3) Power supply mode: DC9V~36V, outerlead 2000mm, red positive and black negative, including modified fuses suitable for vehicle;
(4) Data upload: 4G function;
(5) Screen size: 7inch;
(6) Audio interface: Outer lead 1500mm,3.5mm audio plug;
(7) Installation method: Enhanced version bracket installation.
(8) GPS: positioning function
(9) Dimension: 172mm*127mm*38mm
(10) 1 display can monitor max 65 seats, seat layout can be custom configured.


 2. Seat detection terminal

 The seat detection terminal packs the detection results of the seat sensor and the seat belt socket and sends them to the safety reminder host regularly through wireless signals. One seat detection terminal can detect the status information of one or two seats.

As shown in picture, the seat detection terminal and the reminder host transmit wirelessly without wiring, efficient and energy-saving algorithm, the battery can be used for more than 3 years, simple installation design, and the seat detection terminal can be connected with 2 seat belt sockets and 2 seat sensors; The equipment serial number is marked on it, and there is a signal line identification prompt on the front.



(1) Communication frequency band: Sub-1G;
(2) Communication distance: 60 meters(spacious space);
(3) Power supply: replaceable battery,battery life:3 years;
(4) Dimension: 73mm×65mm×24mm
(5) Installation method: screw or cable tie.
(6) Supply voltage: 3.6V
(7) Lead length: 100mm



3. Safety seatbelt buckle and seat sensor

The safety belt socket detects whether the safety belt is buckled, the seat sensor detects whether someone is sitting on the seat, and the detection result is output to the seat detection terminal through the level signal.

 As shown in picture, an electronic detection device is built into the safety belt socket to detect whether the safety belt is buckled; The seat sensor detects whether someone is sitting on the seat through weight monitoring, and reports the detection results to the safety reminder host through the seat detection terminal.



(1)Detection method: bayonet contact type;
(2)Dimension: 145mm*48mm*2.8mm;
(3)Color:black
(4)Insert specification: 21.5mm
(5)Installation method: screw fixed installation,aperture 12.05mm.





 4. Handheld pad


 The handheld pad has special wireless communication function, which can be used by installation and maintenance personnel for input configuration, acceptance and rapid problem location and search. And can interact with server data through 4G.







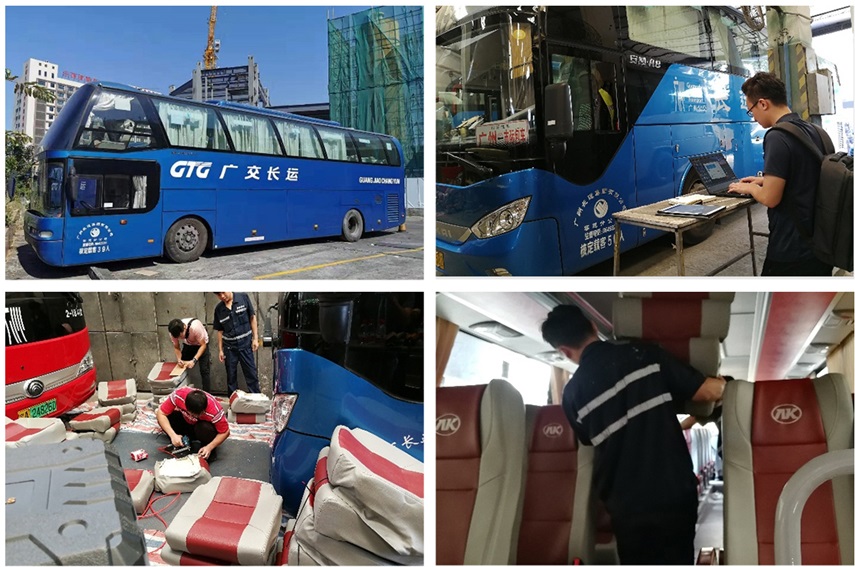

5. Installation



Install the sensor and buckle according to the printed seat layout.

Red color wire is one group for sensor and buckle, blue color wire is the other group for sensor and buckle.









6. Background system

The background system can remotely monitor the situation of passengers on board, count passenger flow, store data, and remotely manage the equipment.





1. Login interface



As shown in picture, the system administrator logs in by entering the account and password to remind the system to view the data. People without permission cannot view the data, so as to better keep the information confidential.





2. Monitoring center



It can remotely monitor the passenger flow and time table of the vehicle, and remotely monitor the passenger flow and time table of the vehicle.

"History Track" and "History seat" can live tracking the vehicle driving route and seat occupancy status and seatbelt fasten status during the period selected.

Seat occupancy tracking data can be download from background system for data analysis, can tracking 30 days data.









3. System interface



The system interface can set account management, vehicle management, etc. Account management can set account authority to facilitate different people to manage their own vehicles; Vehicle management can enter new vehicle information for configuration, classification, management, etc.

 Through the operation of the system interface, you can view the use of each vehicle equipment and realize scientific management for passenger transport enterprises.







7. Remote Configuration



In case the seat layout need modification, we support remote re-configure the seat layout.  steps as below:

1. RD enginner reconfigure the seat layout and send the data package to user.
2. User download the data package and install the "seatbelt host software" and configuration drive "CP2102 Drive" in local computer.
3. Connect Configure cable to the display screen
4. Connect the USB terminal of the configuration cable to the computer,
5. Connect the power to the display screen
6. Open the configuration software to reconfigure, it takes about 2 minutes to finish.











Product Datasheet





CAR SEAT PRESSURE SENSOR

Electrical Properties:

Rated Voltage

Screensize: 7inch;

Rated Current

≤100mA

Operating Power

≤1W

Insulation Resistance

≥100MΩ (250V DC)

Loop Resistance

10Ω~2kΩ (based on the design)

Contact Resistance

0.5 ~ 5Ω

Wire Lead Resistance

<1Ω/cm

Base Material Voltage Withstand

1500V DC

Mechanical Properties:

Life Expectancy

More than 10 years (more than 5 million times)

Operation Force

More than 500g

Tail Bending Performance

≤180°

Vibration

20G's max.

Thickness

0.7~2 mm

Environmental Properties:

Operation Temperature

-40°C to +90°C (-40°to 176°F)

Storage Temperature

-40°C to +90°C (-40°to 185°F)

Atmospheric Pressure

86 ~ 106 kPa

Humidity

+40°C, 90%~95%RH for 480 Hours

Working principle:

Sensors

detect if the safety belt is fastened

Two-level reminder

1st level: vision,2nd level: vision + sound

SBR Features

1.Membrane,2.Activated by pressure

Usage

Can adjust layout and sensibilities of sensors according to the shape

SBR Applications

taximeters, air-bag sensors and driver-presence sensing sensors

Layer and Material specification

Top printing circuit

Silver paste +carbon paste + PET 0.125mm

Spacer

adhesive 0.10mm

Bottom printing circuit

Silver paste +carbon paste + PET 0.125mm

Connector types:

BS01,BS02,BS03,BS04,BS05,BS06

Wiring types

C01,C02,C03

Other Features

Artwork/Drawings Format

CorelDraw, Adobe Illustrator AI, AutoCAD

Tail/Pin/Circuit Layout

Based on customers detailed requests

Antistatic Shielding

Can be added For Protection

Connector

Female/Male Connectors or ZIF Connector

Rear Adhesive:

3M467, 3M468, 3M9080 etc…

Cables

Extension of Circuit and Connect with your Device

Printing Method

Silk Screen Printing/Digital printing

Windows/Lens Coating

Can be added

Certificate

ISO9001, ISO14001, CE, RoHS, SGS

MS Application

--------------------------------

Working principle:



When someone is sitting on a car seat, The car seat surface is subjected to a pressure, This pressure makes the upper and lower circuit layers of the seat sensor contact each other, Thus, the circuit loop is turned on conductive to generate a signal to other devices, Showing someone is sitting on the car seat, and, other systems in the car will use this signal to work, For example, the seatbelt warning system will detect if the person on the car seat whether put a seat belt on himself.
