Westbay New Design Spain Smart Luz V16 4G NB IOT GPS Tracking Connect to DGT 3.0 Platform Support e-SIM SIM card SOS Emergency Light for Car Bus Van Truck Taxi All Vehicles,

Brand name: WESTBAY
Product name：Luz V16 GPS Emergency Light
Model Number:  NB IOT+ GPS tracking +SOS+ DGT3.0
Application：Car, Bus, Van, Truck, Taxi,  All Vehicles,
Housing：Plastic
Waterproof: IP 65
Screw: Hand disassemble screw type without tool
Weight: 120g
Certificate：TELCO, V16, CE, ROHS, ISO 9001, ISO140001
INQUIRY NOW

Product Details



Product Description


WESTBAY SMART V16 4G GPS Emergency Light

Intelligent V16 light connect to DGT 3.0 Platform




Demand background：

Issued by the Spanish Royal Decree No. 970 / 2020, the new traffic safety law decides to enable the V-16 stroboscopic emergency signal device. The Spanish Ministry of transport DGT 3.0 requires that all V16 emergency lights (emergency warning lights) on sale must be equipped with GPS positioning and communication functions from July 1, 2021. It is approved to be used from 2021, and it is mandatory to use it together with the triangular warning board from January 2024.



---------------------------------------------------------------------------------------
What is the V-16 Emergency Signal Device? After a traffic accident or vehicle failure on the highway, the driver must get off and place a triangular warning sign behind the vehicle. However, in the process of placing the triangular warning sign, it is dangerous for the vehicle driver. In order to reduce this risk, V-16 emergency signal device (emergency signal lamp) came into being. If the device is equipped on the vehicle, the vehicle driver can open the window without getting off the vehicle and place the signal lamp on the roof, so that passing vehicles can know the vehicle fault, so avoid in advance, and greatly reduce the risk in the process of placing the triangular warning sign by the vehicle driver.
---------------------------------------------------------------------------------------

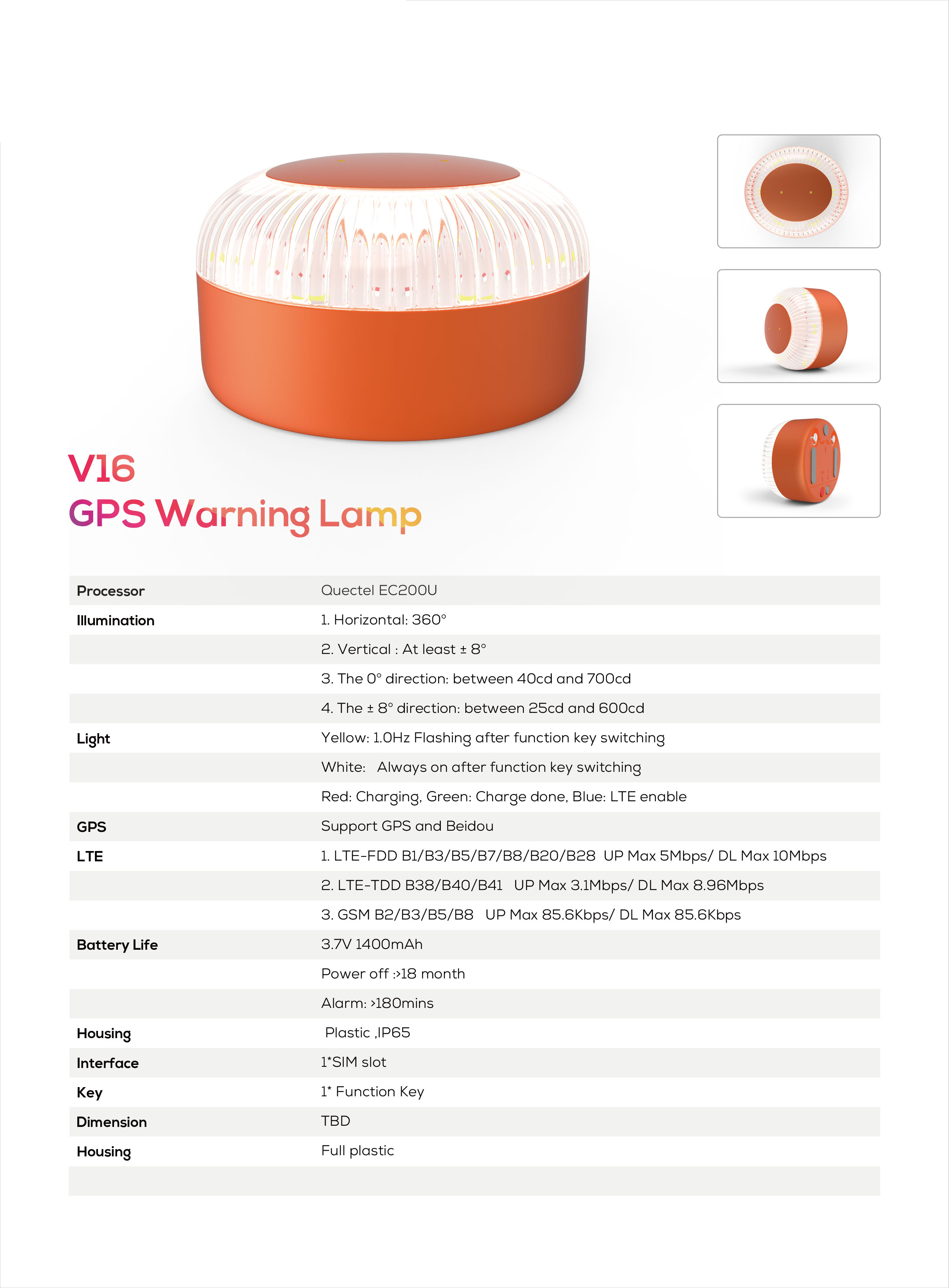

Specification Sheet of Spain V16 Emergency Light with GPS Tracking Function


Processor Quectel EC200U
Illumination

1.Horizontal: 360◦

2.Vertical : At least ± 8◦

3.The 0◦ direction: between 40cd and 700cd

4.The ± 8◦ direction: between 25cd and 600cd
Light

Yellow: 1.0Hz Flashing after function key switching

White:   Always on after function key switching

Red:      Charging

Green:   Charge done

Blue:      LTE enable
GPS Support GPS and Beidou
LTE

1. LTE-FDD B1/B3/B5/B7/B8/B20/B28

2. LTE-TDD B38/B40/B41

3. GSM B2/B3/B5/B8

4. NB-IOT
Battery Life

3.7V 1400 mAh

Power off :>18 month

Alarm: >180mins
Housing Plastic , IP65
Interface

1* Type-C port (for charging + Data)

1* Build in e-SIM / SIM card
Key

1* Function on/off Key,

1* SOS GPS key
Dimension 85mm+75mm+35mm
Feature:  Magnetic base Custom
Logo: Custom
Product Weight:
120g(without battery)
Platform: Spain DGT 3.0
Communication Function: Yes， 4G NB-IOT
OEM Packaging: Yes
Battery Replacement:

Yes

Screw：

Hand disassemble type without tool
Certification：

ISO9001, ISO14001, IATF16949

CE, ROHS, IP65, V16, UL
