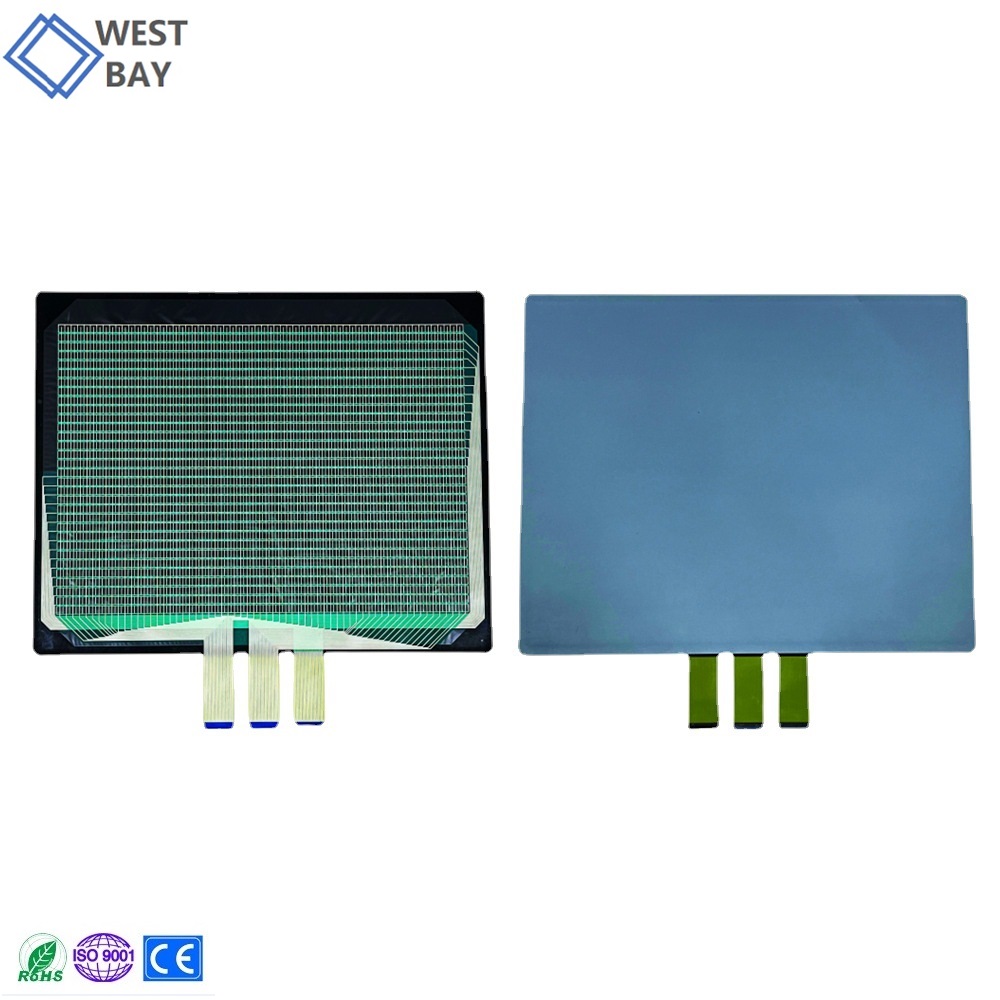

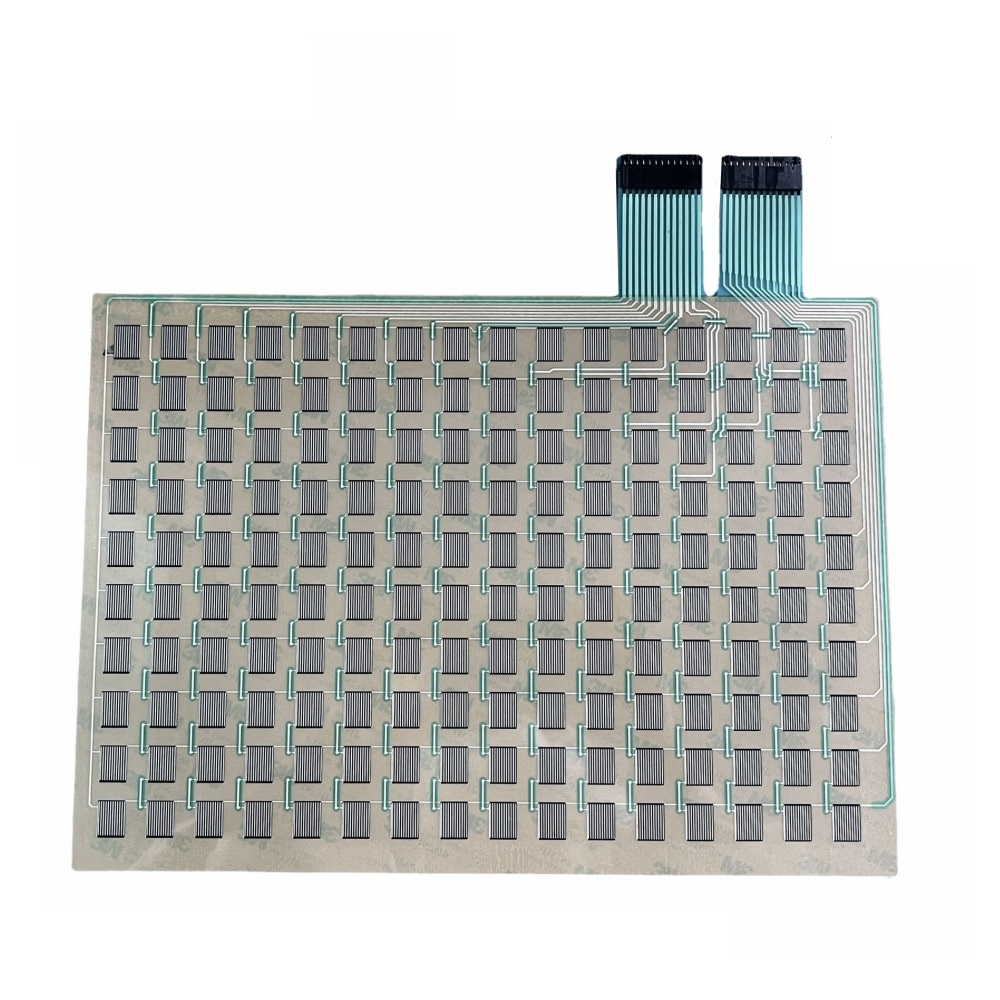

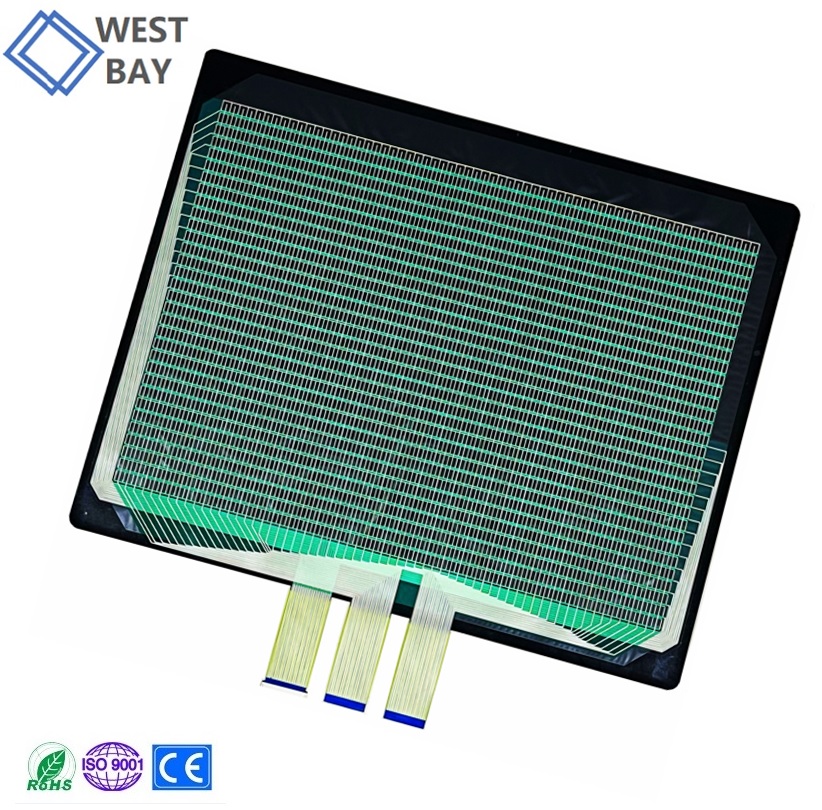

Westbay Customized Flexible Thin Film Pressure Force Sensing Resistance Sensor Matrix Array 32x64 2048 Point Pressure Distribution Monitoring Pressure Sensing Sheet
Brand name: WESTBAY
Product name：Matrix Array FSR Pressure Sensor

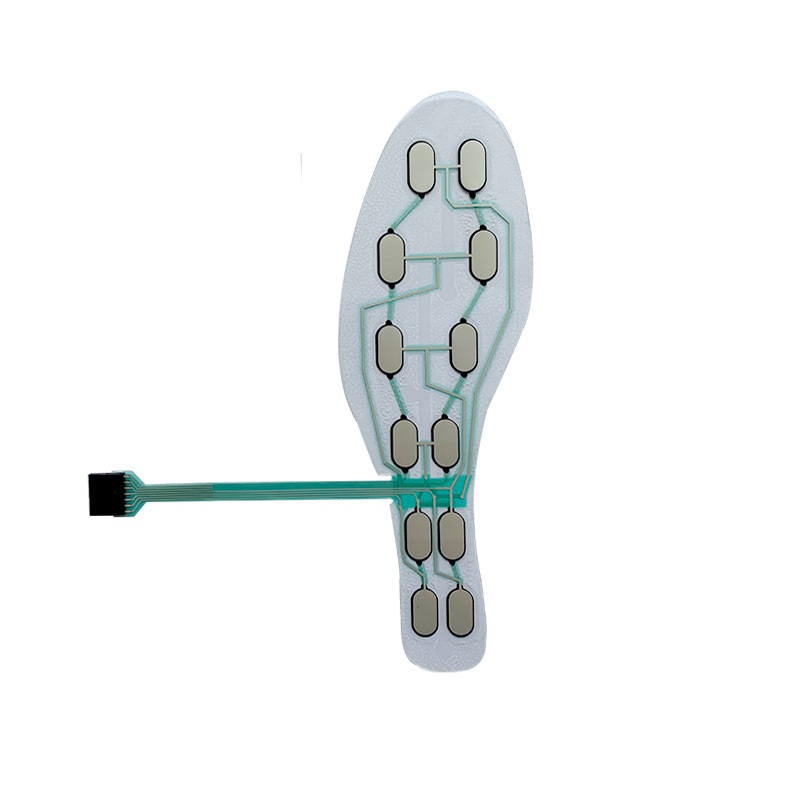

Model Number: FSR Foot Gait Analysis Pressure Sensor
Application：Dynamic Force DIstribution Measurement
Force Range: 3g-300kg
FSR Characteristics: Force Vs Resistance Curve
Working voltage: 3.3V-5V
Response time：<1 ms
Off resistance：>2MΩ
Connector：Male/ Female 2.54 pitch /ZIF 1.0mm,2.54mm
Material：PET, FORCE-SENSITIVE INK, SILVER CONDUCTIVE, High Resistance Carbon Film, 3M adhensive,
Certificate：CE, ROHS, FCC, ISO 9001, ISO1400
